In this lesson, you'll have a button press modify the value of a variable rather than have the button press directly impact the code. This adds one more link to the chain of code complexity: Button --> Variable --> Action on screen.
/*
* In this lesson you'll make your character jump with a button press.
* Another state variable will tracks whether or not the character is
* supposed to be jumping.
*
* Unlike the runState variable, the jumpState variable will have three
* states: 0, 1, and 2, which will refer to the default 'waiting to jump'
* state, the 'in the jump' state, and the 'after the jump' state. The
* 'after the jump' state exists to make sure the button has been
* released. Without it, holding down the button would make the character
* fly!
*/
#include "MakerScreenXVI.h"
MakerScreenXVI lcd;
byte run0[8] = { //legs in partial stride
0b00000,
0b01100,
0b01100,
0b01100,
0b01110,
0b01100,
0b01010,
0b01010
};
byte run1[8] = { //legs in full stride
0b00000,
0b01100,
0b01100,
0b01111,
0b01100,
0b01100,
0b01010,
0b10001
};
int position = 0; //holds the changing position of the cursor
bool runState = 0; //which running animation to draw (0 or 1).
/*
* The jumping state variable is set it to 0. This variable cannot be
* a bool like runState because it will go beyond 0 or 1.
*/
int jumpState = 0; //0 ='pre-jump', 1 ='mid jump', 2='post jump'
void setup() {
lcd.begin();
lcd.backlightOn();
lcd.createChar(0, run0);//put run0 array character into 'slot' 0
lcd.createChar(1, run1);//put run1 array character into 'slot' 1

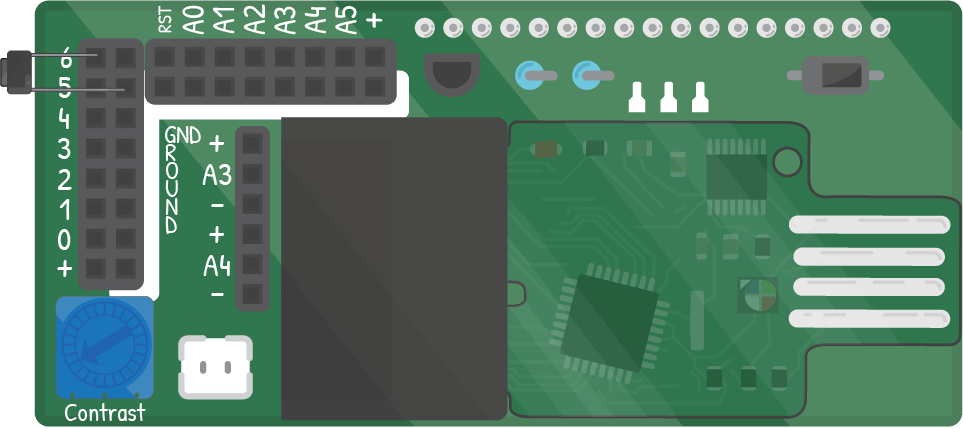

pinMode(6,INPUT_PULLUP); //button for character jump
}
void loop() {
lcd.clear();
// If the jumpState = 0 ,put the cursor at 'position' on second row
if (jumpState == 0){
lcd.setCursor(position,1);
}
/*
* If jumpState is 1, character is in the jump. Set the cursor to draw
* at the 'position' on the top line. This check and the one below it
* use 'else if'. An 'else if' is only checked if the preceeding 'if'
* is not true. You can have multiple 'else ifs' in a sequence and each
* is checked only if all those before it are false.
*/
else if (jumpState == 1){//if jumpState isn't 0, check if it's 1...
lcd.setCursor(position,0); //if so, set man to 'position' on top row
// Advance jumpState to 2 to indicate that the jump has been made
jumpState = 2;
}
//If jump has been completed, return cursor to position, bottom row
else if (jumpState == 2){
lcd.setCursor(position,1);
} //end of the three if-elseif-elseif options
lcd.write(byte(runState));//draw the run0 or run1 animation
delay(300); //how quickly the animation changes is based here
runState = 1 - runState; //change which animation will be drawn next
/*
* If digitalRead is LOW, the button is pressed. When the button is
* pressed and jumpState = 0, change the jumpState to 1. Nothing will
* happen immediately,but the variable will hold that value and be
* referenced later.
*/
if ((digitalRead(6) == LOW)&&(jumpState == 0)){
/*
* && is called a 'Boolean and' and it combines checks. When you see
* (A)&&(B), that check is true if A is true AND B is true. This
* checks if both the button is pressed AND the jumpState variable is
* set to 0, and executes the following code only if both are true.
*/
jumpState = 1;
}
/*
* Similarly, check here if the jump has been completed and the button
* is released. If so, reset jumpState to 0. This prevents the character
* from staying in the air if you hold the button down.
*/
if ((digitalRead(6) == HIGH)&&(jumpState == 2)){
jumpState = 0;
}
if (runState == 0){
position = position + 1;//update position every other animation update
}
if (position == 16){ //reset position to 0 when you reach the screen's edge
position = 0;
}
}
/*
* In this lesson, you made the character jump with a button press.
* A variable (jumpState) controls this jump. The three values that you
* use for this variable could be called 'states'. These three have to
* interact so that your game can't be cheated by holding a button.
*
* When testing the code from this lesson, you might notice that
* the guy sometimes doesn't jump if you push and release the button too
* quickly. This is caused by the use of delay.
*
* When you put in a delay, the controller sits idle while it
* waits for the time to pass. In this lesson, the program can only catch
* the button press if you hold the button down long enough to get
* through they delay and back to a digitalRead().
* Keep in mind the loop can running thousands of tmes per second without
* any delays, so even a half-second delay slows down the loop immensely.
*
* In the next lesson, you will rework the code to remove delay.
*/
//(c) 2017 Let's Start Coding. License: www.letsstartcoding.com/bsdlicense
Heads up! You need our Chrome App to run this code.
Success!
Compile errors:
Serial port monitor:
Input:
This lesson shows that some things that are fairly simple for a human take some work to make happen for a computer. The program doesn't 'know' anything about the character, so you have to very carefully think about and track the different states with code.
